Lauber L-ENZ Dryers



The Lauber L-ENZ dryer was designed to minimise the drying time of bulk solids, through a high-performance fan and heat-exchanger system.



The technology of the L-ENZ is second-to-none and optimises the drying process through its efficient power consumption, while maximising the thermal output. Lauber technology ensures that the optimum calorific value of material is reached through its drying process. Types of materials which can be dried include: woodchip, logs, grain, recycling material, digestate, wood-shavings and many more.



Each L-ENZ is custom built, completely assembled and delivered ready for operation. It can be used in conjunction with either drying containers or a dedicated drying floor area. Both options are provided with a specially manufactured ventilated floor to allow an equal air flow throughout the covered area.



The whole system is then controlled via a user-friendly control system providing maximum flexibility for the user to adapt to their drying needs.

Key Features:

  • Single phase option available for L-ENZ 80 – L-ENZ 650.
  • Minimal electrical consumption – on average 1% – 3% of 100% thermal       output.
  • Can be used in connection with a Heizomat biomass boiler, biogas or CHP plant.
  • In-house plant layout design from your HeizomatGB team.
  • Larger heat exchangers to upgrade your L-ENZ unit (L-ENZ+ versions).
  • Typical drying time for wood chip is approx. 2 days for 55% – 20% moisture content.
  • Fan speed control according to pressure differential- avoiding unnecessary operation.
  • Bespoke ducting solutions according to client requirements.

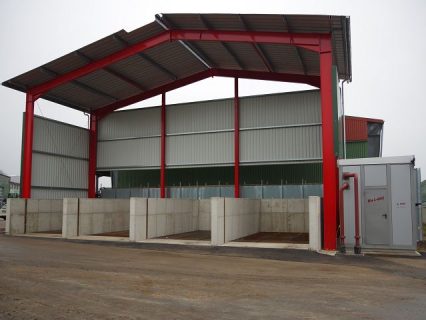

Drying Floor

Containers

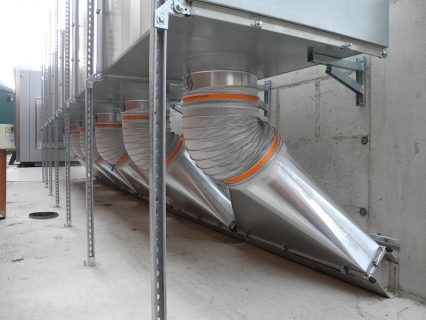

Ducting

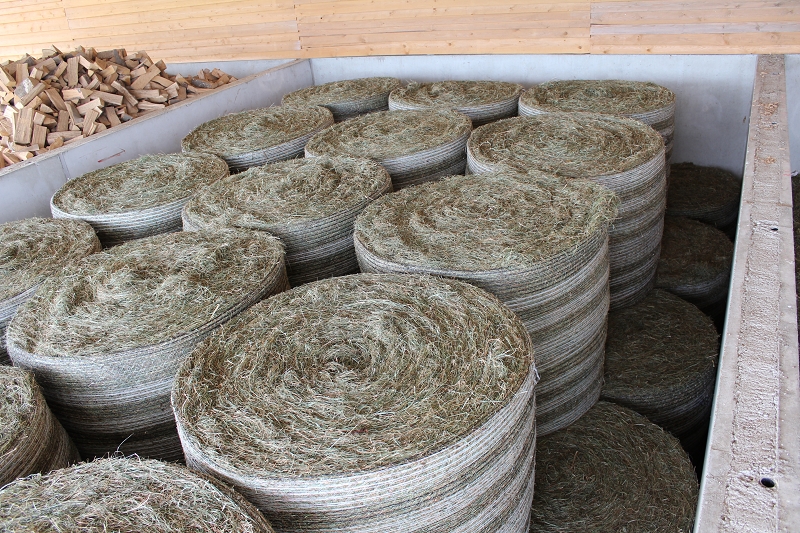

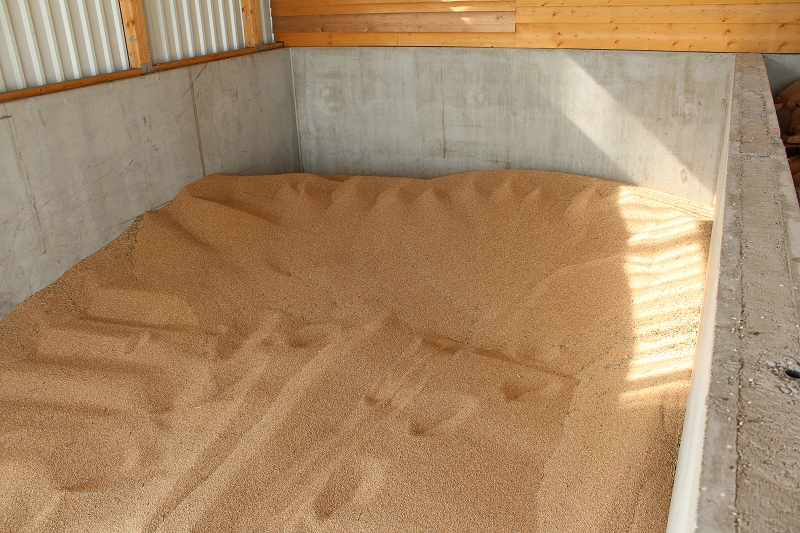

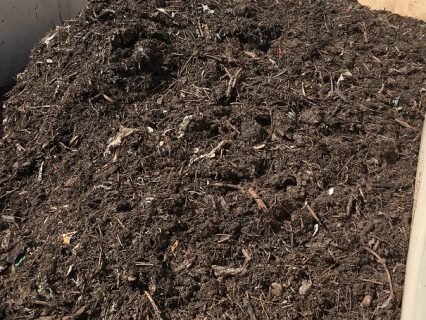

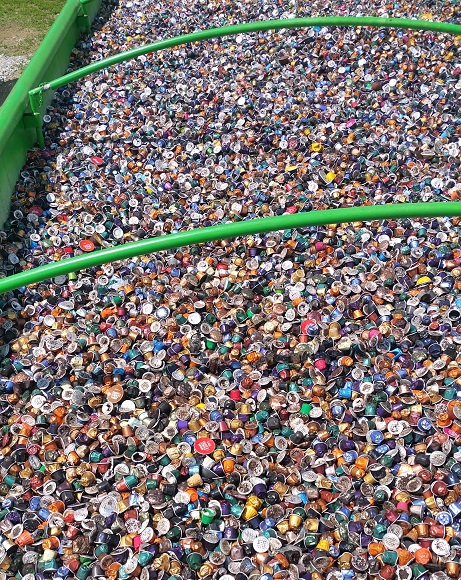

Material Drying

L-ENZ 80

L-ENZ 80



Thermal Output: 80kW


Dimensions: 3700 x 2150 x 2300 mm (L x W x H)


Electrical Consumption: 0.8kW – 2.4kW


Fan Size: 3kW


Drying Containers: 1 container


Drying Floor Area: 15.6m2

L-ENZ 150

L-ENZ 150



Thermal Output: 150kW


Dimensions: 5000 x 2450 x 2700 mm (L x W x H)


Electrical Consumption: 1.6kW – 4.8kW


Fan Size: 5.5kW


Drying Containers: 1-2 containers


Drying Floor Area: 31m2

L-ENZ 280

L-ENZ 280



Thermal Output: 280kW


Dimensions: 5000 x 2450 x 2700 mm (L x W x H)


Electrical Consumption: 2.6kW – 7.8kW


Fan Size: 7.5kW


Drying Containers: 1-3 containers


Drying Floor Area: 47m2

L-ENZ 370

L-ENZ 370



Thermal Output: 370kW


Dimensions: 5000 x 2450 x 2700 mm (L x W x H)


Electrical Consumption: 3.6kW – 10.8kW


Fan Size: 11kW


Drying Containers: 1-4 containers


Drying Floor Area: 62m2


L-ENZ  370+ Thermal Output: 430kW

L-ENZ 520

L-ENZ 520



Thermal Output: 520kW


Dimensions: 5950 x 2450 x 2700 mm (L x W x H)


Electrical Consumption: 4.5kW – 12.5kW


Fan Size: 15kW


Drying Containers: 1-5 containers


Drying Floor Area: 78m2


L-ENZ 650

L-ENZ 650



Thermal Output: 650kW


Dimensions: 5950 x 2450 x 2700 mm (L x W x H)


Electrical Consumption: 5.6kW – 16.8kW


Fan Size: 18.5kW


Drying Containers: 1-6 containers


Drying Floor Area: 94m2


L-ENZ  650+ Thermal Output: 690kW

L-ENZ 800

L-ENZ 800



Thermal Output: 800kW


Dimensions: 5950 x 2500 x 2900 mm (L x W x H)


Electrical Consumption: 7.5kW – 22.5kW


Fan Size: 30kW


Drying Containers: 1-8 containers


Drying Floor Area: 125m2


L-ENZ  800+ Thermal Output: 910kW

L-ENZ 1000

L-ENZ 1000



Thermal Output: 1000kW


Dimensions: 6350 x 3000 x 3450 mm (L x W x H)


Electrical Consumption: 9.2kW – 27.6kW


Fan Size: 45kW


Drying Containers: 1-10 containers


Drying Floor Area: 156m2


L-ENZ  1000+ Thermal Output: 1120kW

L-ENZ 1250

L-ENZ 1250



Thermal Output: 1250kW


Dimensions: 6350 x 4310 x 3450 mm (L x W x H)


Electrical Consumption: 12kW – 36kW


Fan Size: 55kW


Drying Containers: 1-12 containers


Drying Floor Area: 187m2
