HSK-RA



The HSK-RA series can produce 15-210kW of heat and is ideal for farms, large houses and small businesses. The HSK-RA boilers can burn G50 woodchip, pellets, wood shavings and sawdust. This system is designed to be self-cleaning and a rotating ash scraper in the combustion chamber automatically cleans away all residual ash. Our technically-optimised horizontal heat exchangers come equipped with automatic cleaning augers, for minimum maintenance. The fuel-feed system is fully automatic and material is fed into the boiler via augers. All sizes of boilers utilise automatic glow-bolt ignition as standard to ensure an easy and safe ignition process every time.



HSK-RA boilers come with lambda and vacuum control as standard, for optimum combustion and safety. All HSK-RA boilers can operate using either a single or 3-phase power supply, so there is no need to change the existing site supply.

Screenshot 2019-03-01 at 11.31.03

The optional extras for the HSK-RA are:

  • Automatic Ignition: boilers from 15 – 210kW come equipped as standard with single or double glow-bolt ignition to ensure an easy and safe ignition process every time.
  • GSM Modem: allows a text message to be sent to a pre-defined list of phone numbers in case of an error with the boiler, so problems can be resolved swiftly.

  • Buffer Control: if your boiler is connected to a buffer tank, buffer control allows the boiler and buffer tank to work in conjunction with each other for maximum efficiency and control on your Siemens touch-screen.

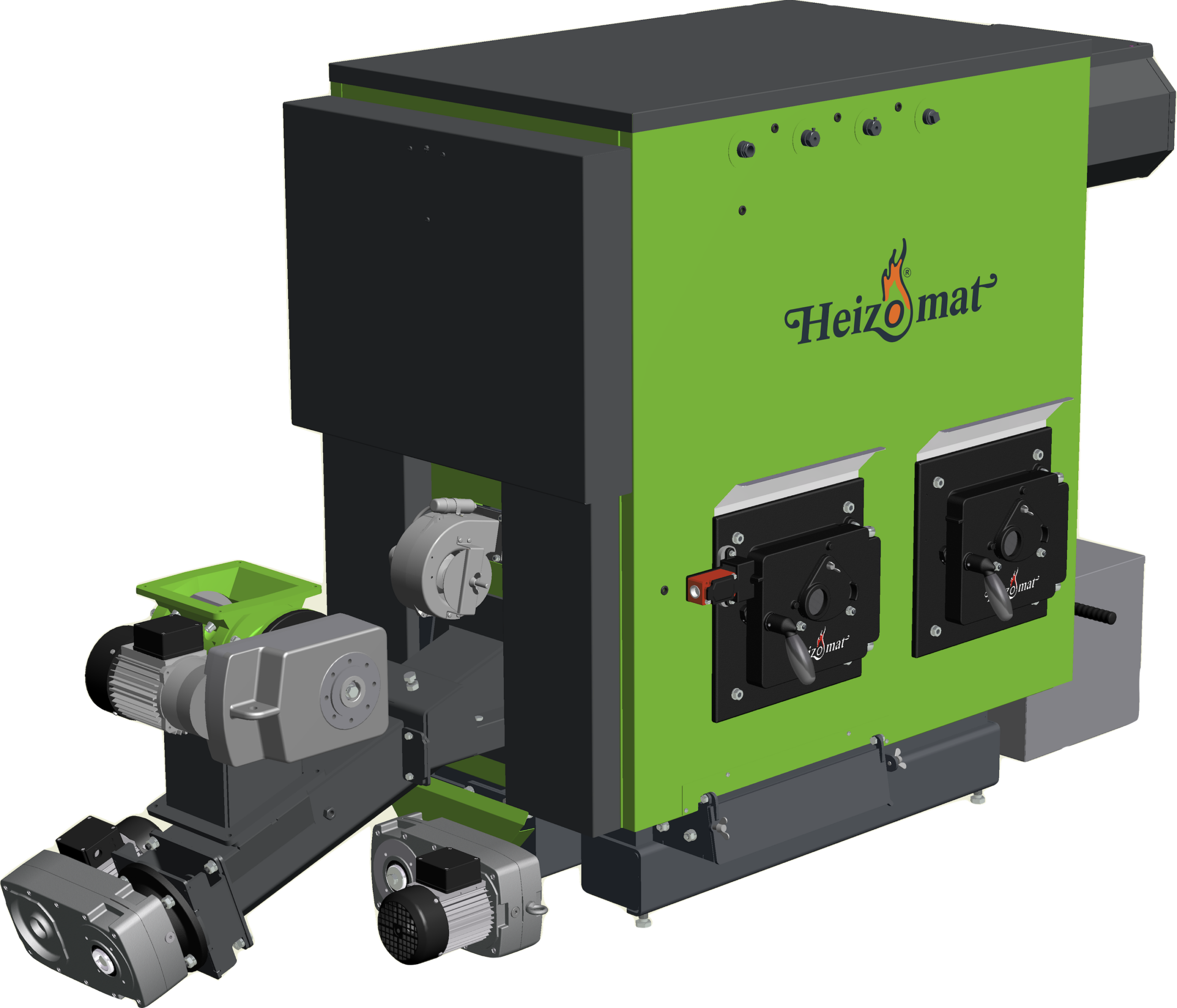

<strong>HSK-RA 60

HSK-RA 60




Output: 0-60 kW


Dimensions: 1335 x 740 x 1442 mm (L x W x H)


Water connection pipes: 1 inch


Weight: 950 kg


HSK-RA 60 Datasheet

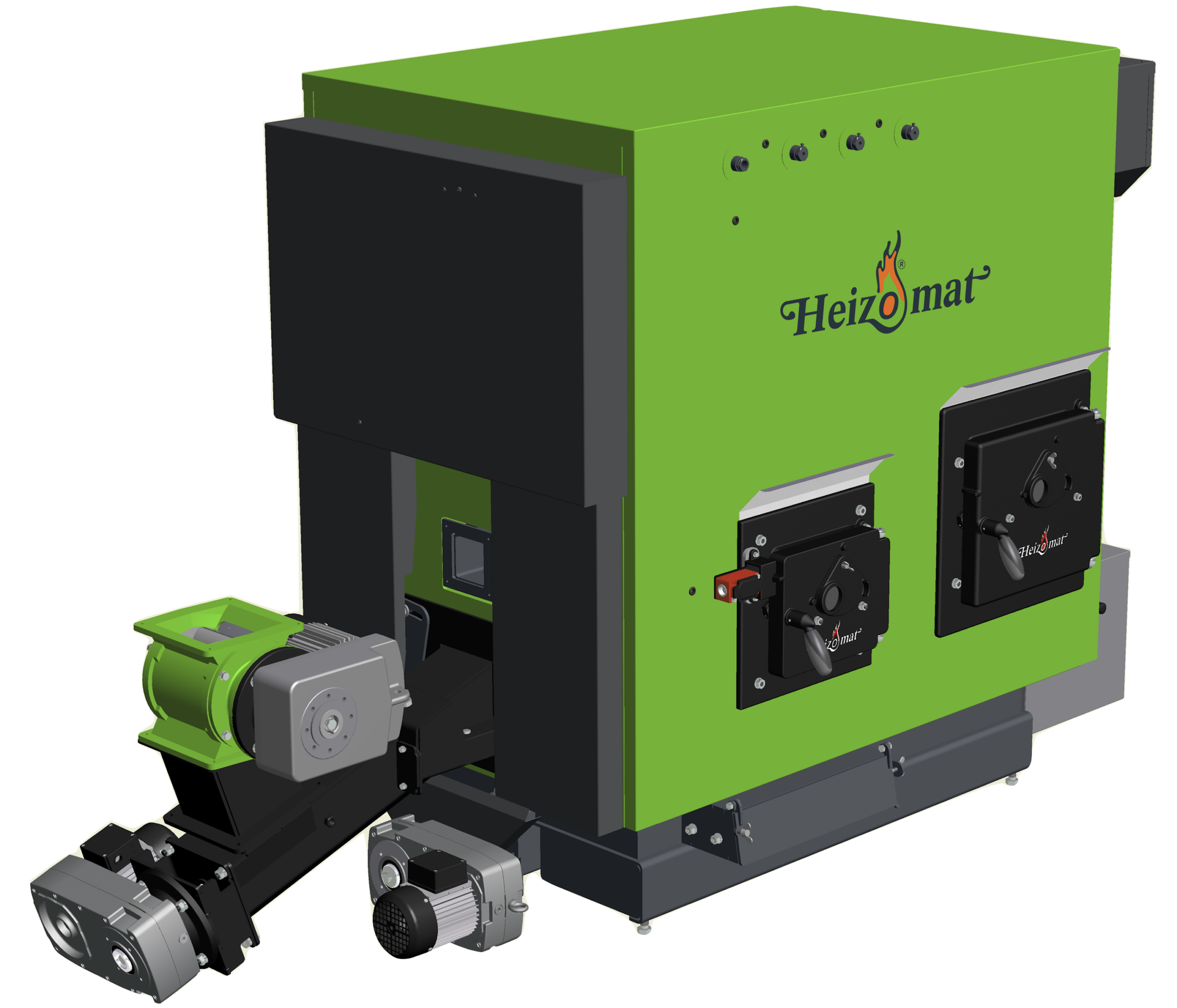

<strong>HSK-RA 75

HSK-RA 75




Output: 0-75 kW


Dimensions: 1335 x 890 x 1550 mm (L x W x H)


Water connection pipes: 1 inch


Weight: 1300 kg


HSK-RA 75 Datasheet

<strong>HSK-RA 100

HSK-RA 100




Output: 0-100 kW


Dimensions: 1635 x 890 x 1550 mm (L x W x H)


Water connection pipes: 1 inch


Weight: 1470 kg


HSK-RA 100 Datasheet

<strong>HSK-RA 150

HSK-RA 150




Output: 0-150 kW


Dimensions: 1695 x 930 x 1980 mm (L x W x H)


Water connection pipes: 1.25 inch


Weight: 2140 kg


HSK-RA 150 Datasheet

<strong>HSK-RA 200

HSK-RA 200




Output: 0-210 kW


Dimensions: 2660 x 930 x 1980 mm (L x W x H)


Water connection pipes: 1.25 inch


Weight: 2660 kg


HSK-RA 200 Datasheet
